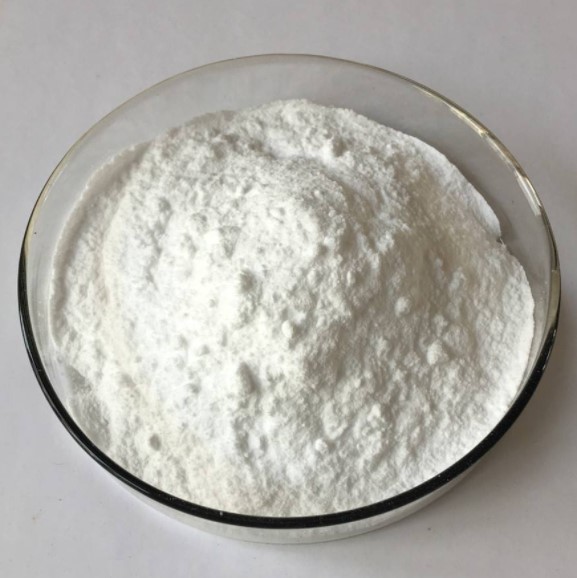

Our Mg-PSZ powder can be divided into three types: ceramic grade, the oxygen determination grade and refractory grade.
| Quantity: | |
|---|---|
Mg-PSZ powder for ceramic grade
With special production process, we can produce different Mg-PSZ powder by adjusting the content of MgO.
Our Mg-PSZ powder can be divided into two types. One is white and the other is yellow and earth yellow, which
are applied for different structural ceramics, anti-corrosion ceramics and Refractory ceramics.
| Type | GK-3M01 | GK-3M01B | GK-3M02 | GK-3M02B | GK-3M03 |
| ZrO2%(+HfO2) | 95.65 | 96.65 | 95.65 | 96.65 | 96.65 |
| MgO(wt%) | 3.2± 0.2 | 3.2± 0.2 | 3.2± 0.2 | 3.2± 0.2 | 3.2± 0.2 |
| Al2O3%≤ | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 |
| SiO2%≤ | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 |
| Fe2O3%≤ | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 |
| CaO%≤ | 0.02 | 0.02 | 0.02 | 0.02 | 0.02 |
| Others≤ | 1 | 0 | 1 | 0 | 0 |
| IL%≤ | 3 | 3 | 3 | 3 | |
| Density(g/cm3)> | 5.70 | 5.6 | 5.75 | 5.65 | 5.5 |
| Bending strength(Mpa) | 550 | 500 | 650 | 600 | 450 |
| Corrosion resistance | Good | Excellent | Good | Excellent | Good |
| Color after sintering | White | Grey white | Yellow | Yellow | Earth yellow |
| HV(Mpa) | 1000 | 1200 | |||
| Application | Structural ceramics, mechanical parts,anti-corrosion chemical ceramics, refractory ceramics | ||||
Mg-PSZ powder for Oxygen-determination
Product Description: With uniform fineness, good thermal shock and made this powder can be applied for
injecting and hot pressing to make the oxygen sensors.
| Product Code | Chemical Composition | Stabilization | ||||
| ZrO2> | MgO≤ | Al2O3≤ | Fe2O3≤ | Others≤ | ||
| GK-DM02 | 96.3 | 2.2 | 0.3 | 0.01 | 0.6 | Excellent |
| GK-DM03 | 96.3 | 2.0 | 0.3 | ≤0.10.01 | 0.6 | Excellent |
| Note | Different molten steel may have different requirements for the powder material,so the sample test should be conducted before mass-production. | |||||
Mg-PSZ powder for refractory grade
It is the unique products made up of high-purity MgO and ZrO2, Which is electric-smelted. The stabilization could
be adjusted based on customers’ requirements, and it it usually around 70%.
| Product Code | Chemical Composition | Stabilization | Particle Size | |||||
| ZrO2> | MgO | SiO2 | Al2O3 | Fe2O3 | TiO2 | |||
| GK-EMZ | >94 | 3-4 | ≤0.4 | ≤0.4 | ≤0.1 | ≤0.2 | 70± | Can be adjusted according to customers’ requirements |
