●This machine is easy to install, adopts hot-dip galvanizing technology for enhanced corrosion resistance, and is safe andreliable.
No | Item | Unit | Specification | |
1 | Model | / | 7ZDGS-300AD | |
2 | Drive Type | / | self-propelled | |
3 | Structure | / | Single-track bidirectional | |
4 | Power | Type | / | electromotor |
Related Voltage | v | 24 | ||
Related Power | KW | 2.3 | ||
Related Speed | r/min | 2800 | ||
5 | Battery | Type | / | lithium battery |
Capacity | A.h | 140 | ||
6 | Weight(Traction type refers to the weight of the cargo compartment.) | kg | 200 | |
7 | Loading weight | kg | 300 | |
8 | Maximum gradeability | ° | 35 | |
9 | Cargo compartment dimensions | mm | 2000*540*350(±5%) | |

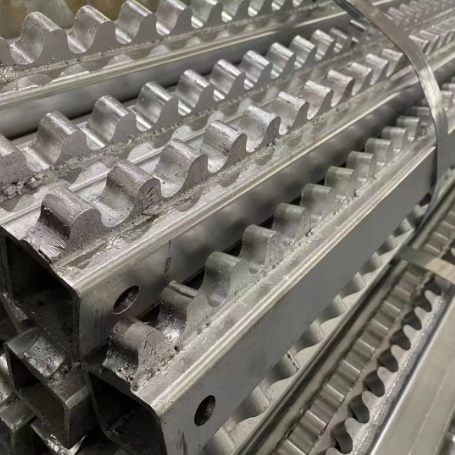

10 | Track Type | Rack | ||
11 | Track Material | Q235R2.5-3000 | ||
12 | Track wall thickness | mm | 2.5 | |
