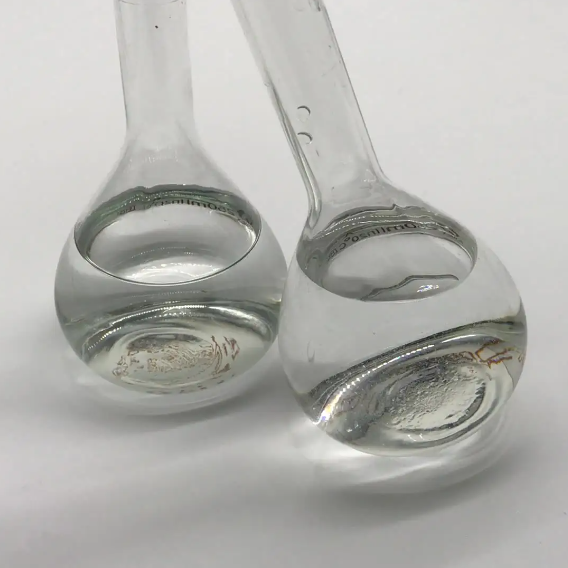

GK-FTM 135 is a colorless, odorless and clarified liquid, and its chemical composition is a mixture of perfluoropolyether. Perfluoropolyether Heat Transfer Fluids GK-FTM 135 could replace Galden HT135 and FC-3283 totally.
Product Description
Perfluoropolyether fluorine fluid GK-FTM135 is a lower molecular weight fluorinated fluid that can be used as a high performance heat transfer fluid, high precision temperature control coolant, high efficiency vapor phase soldering fluid, electronic leak detection fluid, etc.
Characteristics
GK-FTM135 has chemical resistance, thermal resistance, non-toxicity, excellent dielectric properties, non-flash point, non-flammable, low viscosity, non-ozone damaging, meets the relevant regulatory requirements of RoHS, REACH, PFAS, and is a green product.
Quality Index
Composition | |
Perfluoropolyether fluorine fluid | 100% |
Typical Properties | |
Item | Index |
Boiling Point, °C | 125-150 |
Pour Point, °C | -100 |
Density(g/ml), @25°C | 1.74 |
Kinematic Viscosity(cSt) @25°C | 1.2 |
Surface Tension(dyn/cm) @25°C | 13.5 |
Vapor Pressure(KPa) @25°C | 0.5 |
Breakdown Voltage(kv/2.54mmgap) | >40 |
Volume Resistivity(Ω·cm) | ＞1013 |
Dielectric Constant@25°C | 1.9 |
Water Solubility(ppmw) | <14 |
Flammability | non-flammable |
Toxicity | non-toxic |
Specific Heat(J/g·℃) 25°C | 0.97 |
Thermal Conductivity(W/mk) | 0.065 |
Application
Semiconductor, pharmaceutical, chemical, aviation, LCD manufacturing, etc.
Package:
Products are packed in drums, 10kg/drum, or 250kg/drum or according to the customer’s request.
